Bar graphs

• You can draw bar graphs.
• The number allowed to draw the graphs must not exceed 5.
• To start, click "Bar Graphs" button on the applet or select "Bar Graphs" item from Tools in the menu bar.

If you use the sample data, click here, and save it in the directory (or folder) specified in the user policy file.

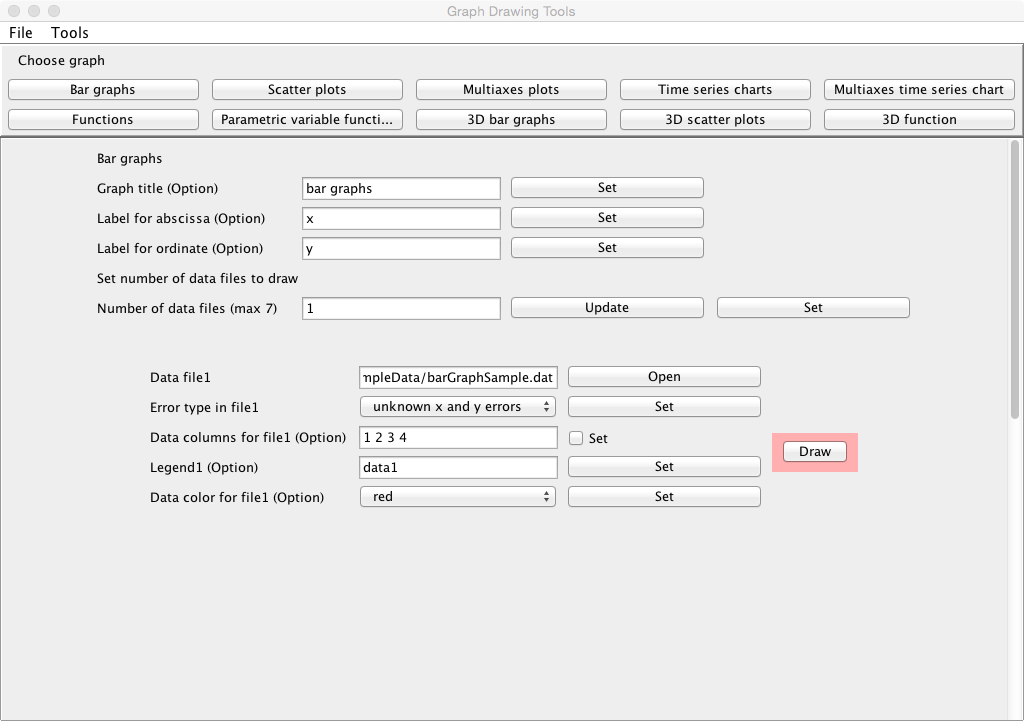

When you draw the bar graph of the sample data,

1. Click the "Set" button at the line "Number of data files (max 5)".
2. Click "open" at the line "Data file1", and specify the data file name saved according to the above instruction.
3. When clicking the "Draw" button bellow, the bar graph is displayed in another window.

Data

1. Data must be inputted by normal width.
2. Data must be inputted in the data file corresponding to the following combinations of the errors of x data and y.
   • When no errors are included in both x data and y, the data must be inputted in order of x and y which are delimited by space or tab. Change the line, and input the data of the following row similarly until the input of the last data ends.

     x1	y1
     x2	y2
     .	.
     .	.
     .	.
     xn	yn

   • When no errors are included in x data and the errors are included in y, the data must be inputed in order of x, y and the error of y, , which are delimited by space or tab. Change the line, and input the data of the following row similarly until the input of the last data ends.

     x1	y1
     x2	y2
     .	.	.
     .	.	.
     .	.	.
     xn	yn

   • When errors are included in x data and no errors are included in y, the data must be inputted in order of x, the error of x, , and y which are delimited by space or tab. Change the line, and input the data of the following row similarly until the input of the last data ends.

     x1		y1
     x2		y2
     .	.	.
     .	.	.
     .	.	.
     xn		yn

   • When errors are included in both x data and y, the data must be inputted in order of x, the error of x, , y and the error of y, , which are delimited by space or tab. Change the line, and input the data of the following row similarly until the input of the last data ends.

     x1		y1
     x2		y2
     .	.	.	.
     .	.	.	.
     .	.	.	.
     x2		y2

3. In addition, you can use the table data form in the data file. You may include the column data in the data file which are not necessary to make the graph. In that case, the specification of the columns in the data file used to make the graph is needed at the line "Data columns for file1(2, 3, ...)(Option)" in the following "Input" instruction.

Data files

1. The title for the graph can be specified at the line "Graph title (Option)". Click the "Set" button after describing it.
2. The label for the abscissa in the graph can be specified at the line "Label for abscissa (Option)". Click the "Set" button after describing it.
3. The label for the ordinate in the graph can be specified at the line "Label for ordinate (Option)". Click the "Set" button after describing it.
4. Input the number of data files to be drawn at the line "Number of data files (max 5)", and click the "Update" button. The number of data files must not exceed 5.
5. After that, click the "Set" button.

Inputs

1. Click "open" at the line "Data file1" and specify the data file name.
2. Select the error type of the data set at the line "Error type in file1" according to the combinations of the errors of x data and y.
   • When no errors are included in both x and y, select "unknown x and y errors", and click the "Set" button.
   • When no errors are included in x and the errors are included in y, select "y errors only", and click "Set" button.
   • When errors are included in x and no errors are included in y, select "x errors only", and click "Set" button.
   • When errors are included in both x and y, select "x and y errors", and click the "Set" button.
3. The columns in the data file to be used to draw a graph can be specified at the line "Data columns for file1 (Option)".
   • When "unknown x and y errors" is selected at the line "Error type in file1", the columns must be specified in order of the column of x data and the column of y data which are delimited by space. For instance, when x data are put in the third column and y data in the fifth column in the data file, specify "3 5", and check the "Set" box.
   • When "y errors only" is selected at the line "Error type in file1", the columns must be specified in order of the column of x data, the column of y data and the column of the errors of y which are delimited by space. For instance, when x data are put in the third column, y data in the fifth column and the errors of y in the sixth column in the data file, specify "3 5 6", and check the "Set" box.
   • When "x errors only" is selected at the line "Error type in file1", the columns must be specified in order of the column of x data, the column of the errors of x and the column of y data which are delimited by space. For instance, when x data are put in the third column, the errors of x in the forth column and y data in the fifth column in the data file, specify "3 4 5", and check the "Set" box.
   • When "x and y errors" is selected at the line "Error type in file1", the columns must be specified in order of the column of x data, the column of the errors of x, the column of y data and the column of the errors of y which are delimited by space. For instance, when x data are put in the third column, the error of x in the forth column, y data in the fifth column and the error of y in the sixth column in the data file, specify "3 4 5 6", and check the "Set" box.
4. The explanatory note (legend) for the graph can be specified at the line "Legend1 (Option)". Click the "Set" button after describing it.
5. The color of the graph can be selected at the line "Data color of file1 (Option)". Click the "Set" button after selecting it.
6. Input similarly for the number of data files specified.

Outputs

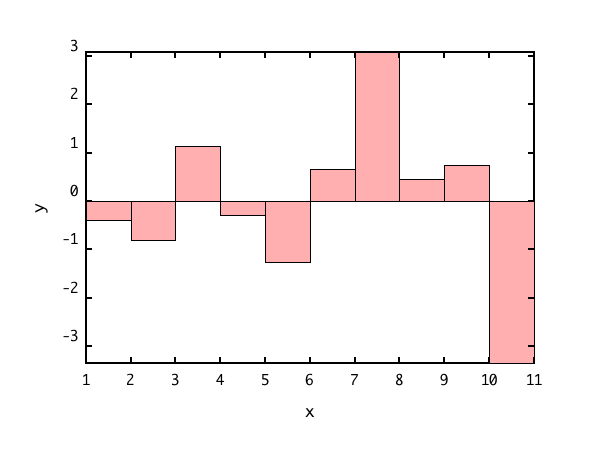

• When the "Draw" button is clicked, the graph is displayed in another window.

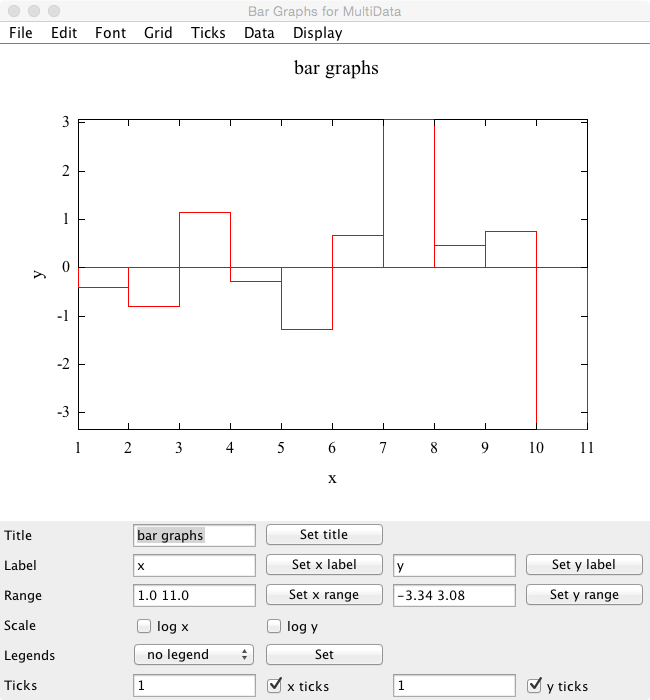

Graph window

1. You can change the title for the graph at the line "Title". When a suitable title is inputted, and the "Set title" button is clicked, the title is changed.
2. You can change the labels of x and y axis at the line "Label". When a suitable label is inputted respectively, and the "Set x label" button and the "Set y label" button are clicked, the labels are changed.
3. You can change the display ranges of x and y axis at the line "Range". When a suitable range is inputted respectively (the numerical values must be delimited by space), and the "Set x range" button and the "Set y range" button are clicked, the graph that the display range has been changed is displayed again.
4. You can change the scales of x and y axis from the linear to the log scale at the line "Scale". When changing it to the log scale, check each check box. When releasing it, remove the check from the box.
5. Explanatory notes (legends) can be displayed at the position specified. At the line "Legends", specify the position at which the explanatory notes are displayed, and click the "Set" button.
6. Ticks can be put in x and y axis at the line "Ticks". Tick can be put by inputting a suitable tick value (1 to 10) and clicking the "x ticks" button or the "y ticks" button.
7. To save a graph image, refer here.
