Suzaku Weekly Monitor of Sgr A* #4 (2)
2013-09-27 04:01:00 -- 2013-09-27 11:35:00 (UT)
Yoshitomo Maeda(PI), Hiroshi Murakami, Takayuki Saitoh, Ryo Iizuka et al.

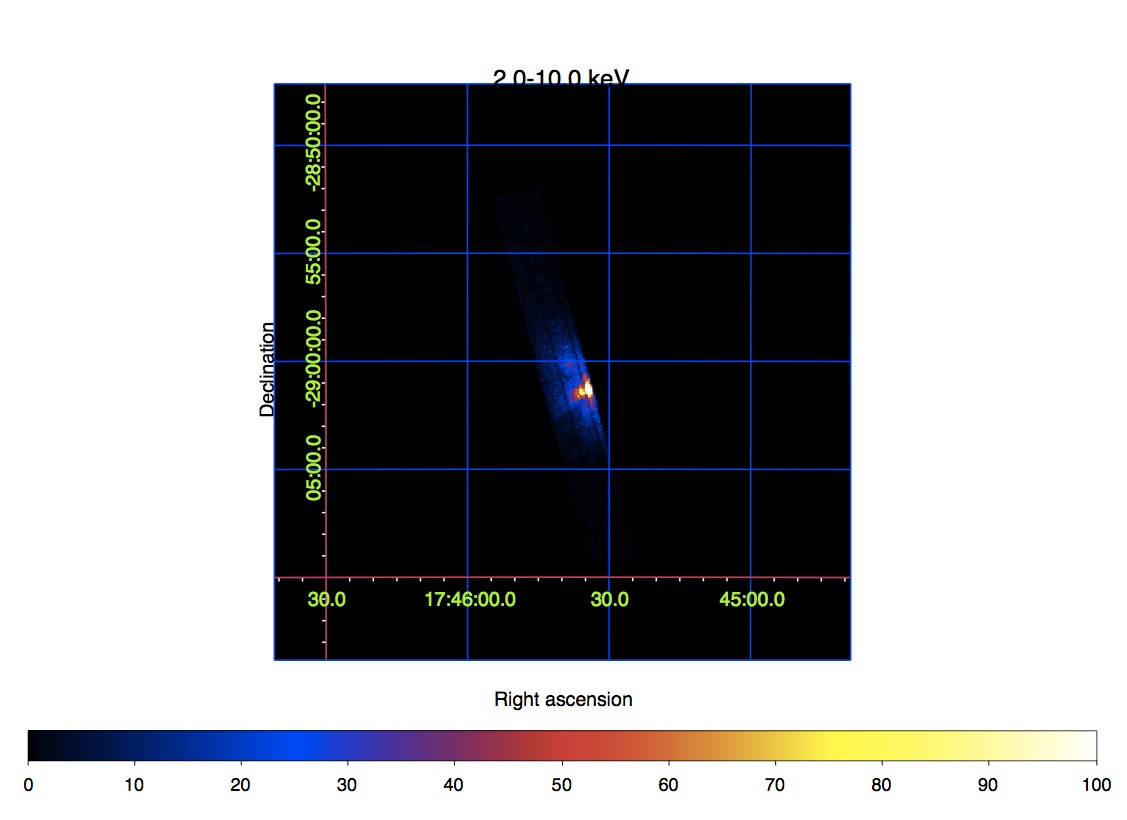

- XIS image (left: 2.0-10.0 keV, right: 6.0-7.0 keV)

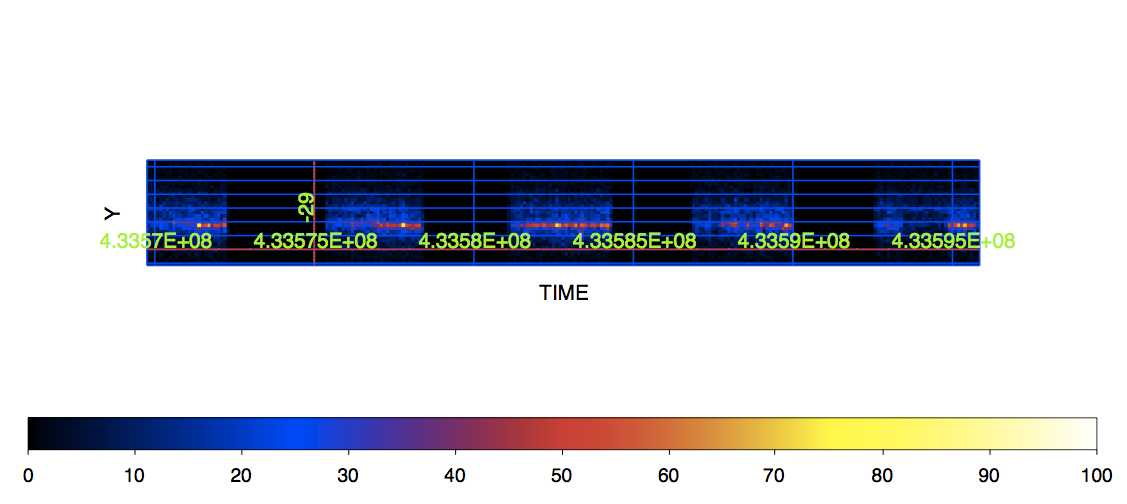

- projection (left: TIME vs X, right: TIME vs Y)

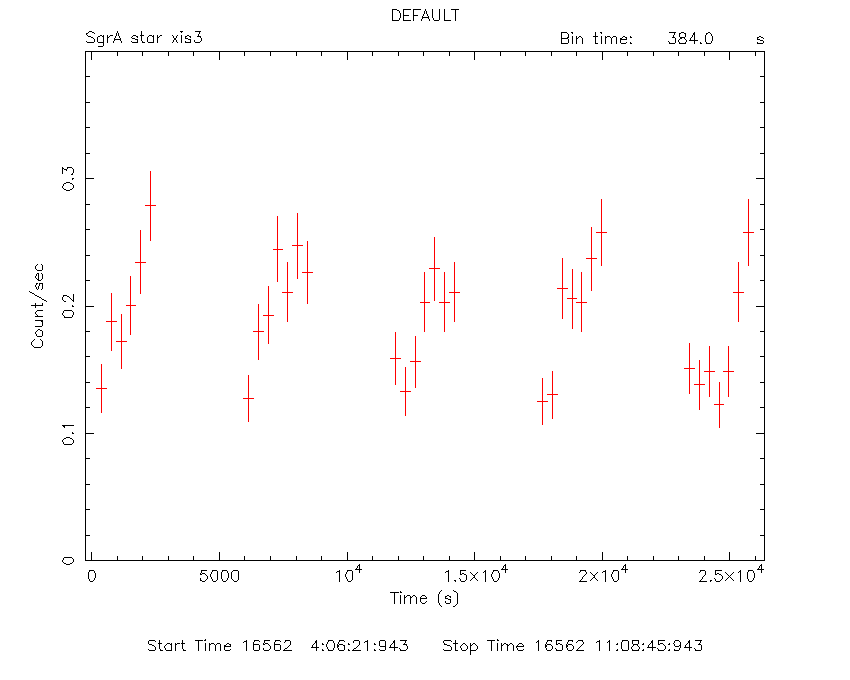

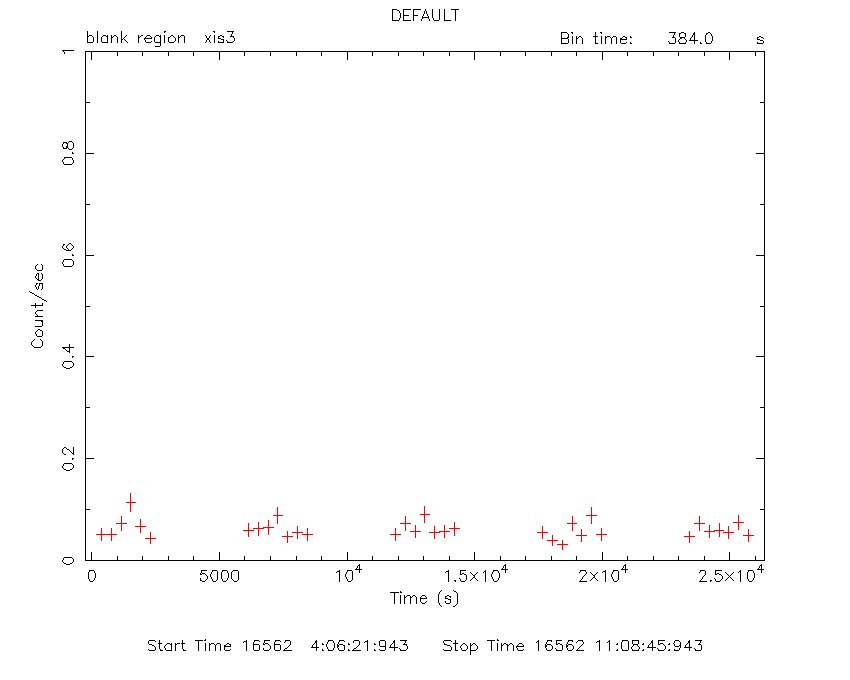

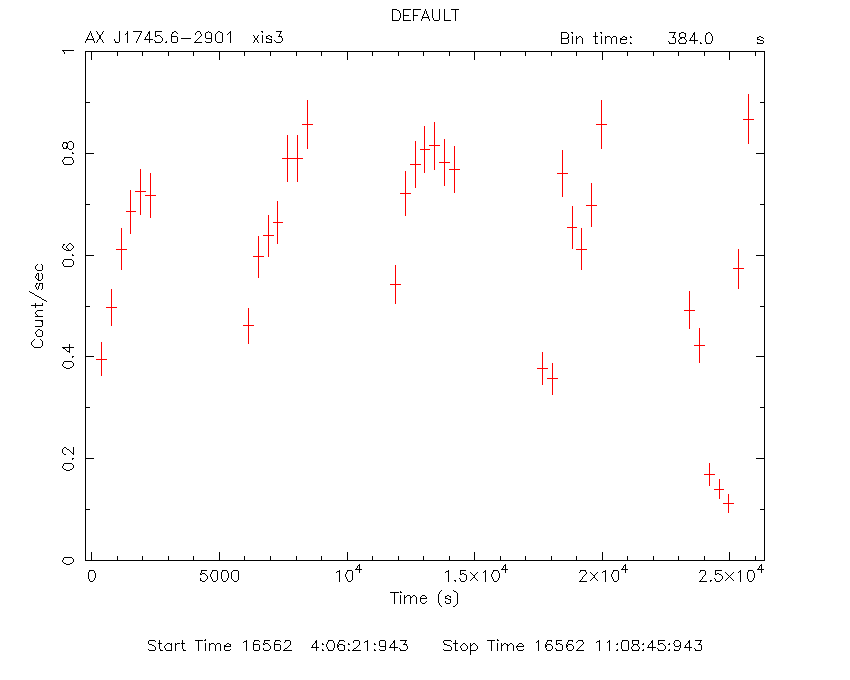

- light curve (left: Sgr A*, center: AX J1745.6-2901, right: blank region)
Important : All the plots shown in this page can be used for the purpose
to trigger follow-up observations only.
The results presented in this page are made using the quick-look data for
health check of the Suzaku instruments.
The data are referred to as "uscfff".
The processing of the uscfff is preliminary.
Accordingly, the plots using the uscfff are all preliminary, too.
The manager kindly allowed us to show the preliminary images and light curve,
which help triggering follow-up observations.
We appreciate the duty scientists who almost daily track Suzaku
at the Uchinoura Space Center and make the uscfff.
Publication in the scientific journal using the uscfff is prohibited
due to the Suzaku collaborations. We will then publish results using
the official data. The official data made through the official processing
will be delivered to us usually in a few months after the observations
are made.
If you have any questions please contact Hiroshi Murakami
(hiro_m 'at' izcc.tohoku-gakuin.ac.jp).
